Laying the Groundwork
2. The All-Important Grid Structure

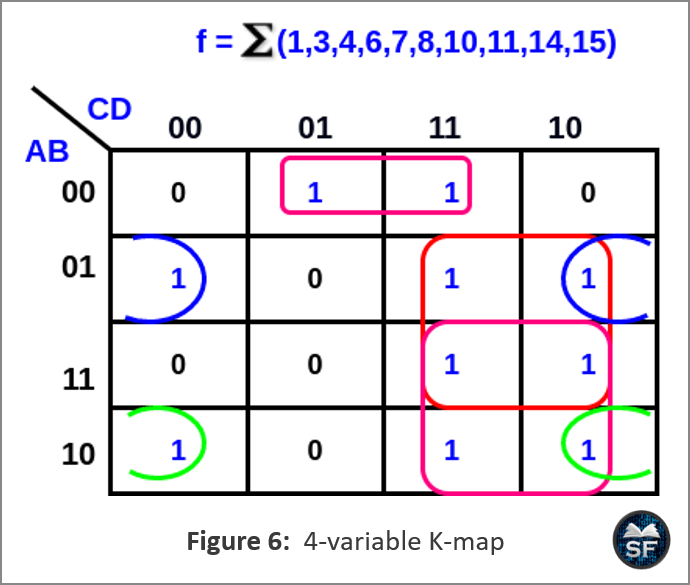

Alright, let's get our hands dirty! The first step in creating a 4-variable K-map is to draw the grid. Now, this isn't your average tic-tac-toe board. A 4-variable K-map has 16 cells arranged in a 4x4 grid. Each cell corresponds to a unique combination of the four input variables, typically labeled A, B, C, and D.
The rows and columns of the grid represent the possible values of these variables. But here's the crucial part: the row and column headings must follow a Gray code sequence. What's a Gray code, you ask? It's a special binary code where only one bit changes between adjacent values. This is what makes the K-map magic work!
So, for our 4-variable K-map, the row headings would be 00, 01, 11, 10, representing the values of variables A and B. Similarly, the column headings would be 00, 01, 11, 10, representing the values of variables C and D. Notice how only one bit changes as you move from one heading to the next. That's the Gray code in action!
Think of it this way: if you accidentally use a standard binary sequence (00, 01, 10, 11), your K-map will be about as useful as a screen door on a submarine. The Gray code ensures that adjacent cells differ by only one variable, which is the key to identifying simplifications. Get this part right, and you're already halfway there!
